Laser
Safety Eyewear:

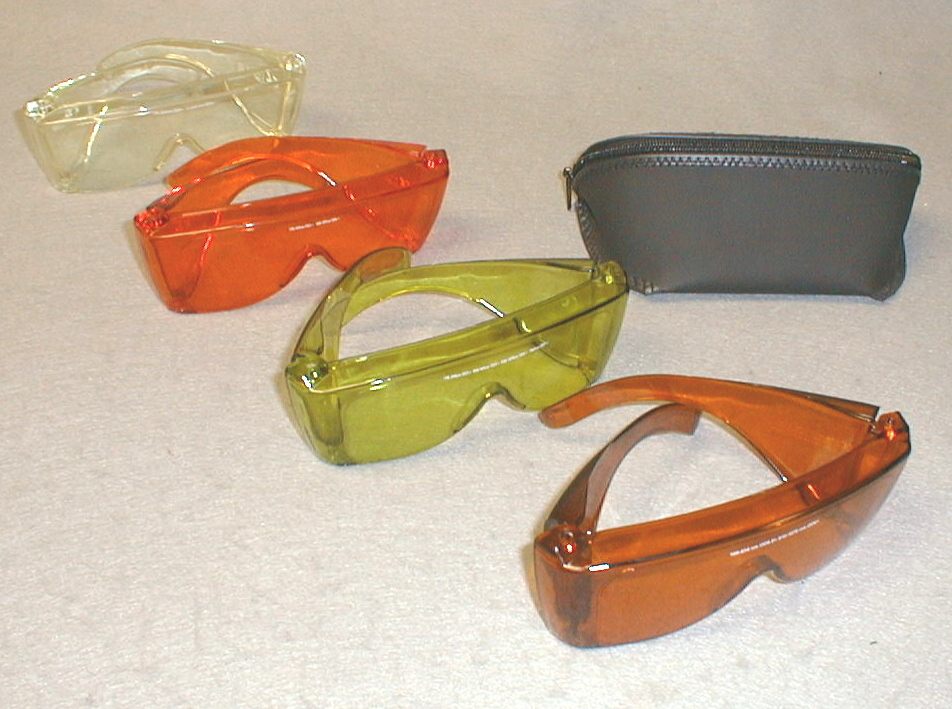

Safety glasses are fabricated from lightweight
polycarbonate plastic and are designed to provide a high level of
visual transmission while absorbing and attenuating light at the laser
wavelength. Two styles are available, as shown in the photos below.
Both styles feature wrap-around configuration, and may be worn directly
or over existing corrective lenses. Spectacles have soft adjustable
temples and side shield protection. Both styles are available for most
popular laser systems, and meet ANSI Z136.1 specs for laser protection
and Z87.1 optical and impact standards. Spectacles that are EN 207
compliant are specified as such. Both styles come with a protective
case. For applications other that those listed below, consult the USL
sales dept.

| Part Number |
Description |
| N1095-1 |
For use with Nd:YAG lasers operating at 1064nm,
visible transmission 59%, filter is green. O.D. at 1064nm is >7.
EN 207 compliant. |
| N1095-2 |
For use with CO2 lasers
operating at 10,600nm, O.D. >5, visible transmission
>90%, filter color is clear. |
| N1095-2A |
Same as N1095-2, but EN 207 compliant. |
| N1095-3 |
For use with Ruby lasers operating at 694nm. O.D.
>6 at 694nm. Visible transmission is 35%, filter color is teal
blue. EN 207 compliant. |
| N1095-4 |
For use with frequency doubled Nd:YAG and argon
lasers operating in the range of 190nm - 532nm, visible transmission
39%, filter color is orange. EN 207 compliant. OD>6 @
450nm-532nm. |
| N1095-5 |
For use with near infrared and Nd:YAG lasers
operating in the range of 720nm - 1090nm, O.D. >7 at 1064nm,
O.D. >5 at 720nm - 1090nm, visible transmission 25%, filter
color is amber. EN 207 compliant. |
| N1095-6 |
For use with Nd:YAG lasers operating at the
fundamental wavelength of 1064nm, the second harmonic of 532nm, the
third harmonic of 355nm, or the fourth harmonic of 266nm, O.D. is
>6 at all these wavelengths except 1064nm, which is >5,
visible transmission is 24%, filter color is amber. EN 207
compliant. |
| N1095-7 |
For use in alignment of low power He-Ne and Diode
lasers operating in the range of 630nm - 700nm, O.D. >1.5,
visible transmission 39%, filter color is blue. |
| N1095-8 |
For use with infrared lasers operating in the
range of 820nm - 1720nm, and U.V. lasers operating in the range of
190nm - 450nm, visible transmission ~19%, O.D. >3 at 820nm -
1720nm, and >4 at 190nm - 450nm. Filter color is green.
EN 207 compliant. |
Goggles
U.S. Laser safety goggles feature an absorptive acrylic
filter with a clear plastic backup plate for impact protection. The
goggle body is asoft vinyl plastic with air vents to prevent fogging,
and an adjustable elastic head strap. Wavelength, optical density, and
part number are permanently laser engraved into filter.
| Part Number |
Description |
| N1075-1 |
For use with Nd:YAG lasers and other lasers
operating in the 840nm - 1064nm wavelength range. Optical density is
>5, visible transmission is ~70%, filter color is light green. |
| N1075-2 |
For use with CO2 lasers
operating at 10,600nm wavelength. Optical density is >5, visible
transmission is ~90%, filter color is clear. |
| N1075-3 |
For use with Ruby and other lasers operating at
670nm - 710nm wavelength range. Optical density is >5, visible
transmission is ~60%, filter color is blue. |
| N1075-4 |
For use with frequency doubled Nd:YAG, Argon and
other lasers operating in the range of 190nm - 540nm wavelength range.
Optical density is >5, visible transmission is ~35%, filter
color is orange. |
| N1075-5 |
For use with Nd:YAG lasers operating in the
fundamental wavelength of 1064nm, the second harmonic of 532nm, and the
third and fourth harmonics at 355nm and 266 nm. Optical density is
> 5 at 1064nm, and > 4 at 532nm, >5 at 355nm and
266nm. Visual transmission is ~ 20%, filter color is brown. |
|
