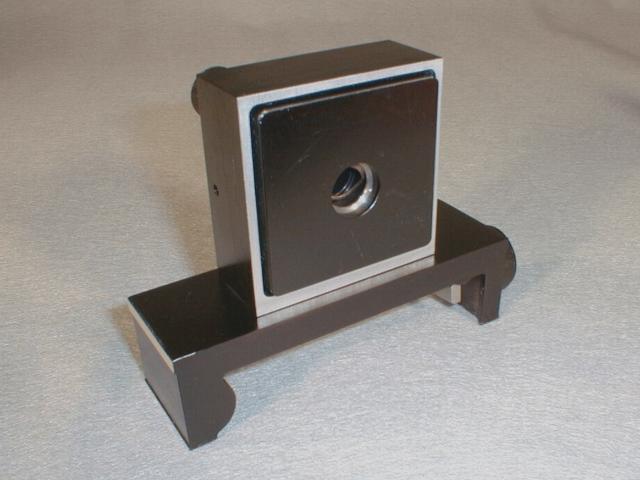

 Mirror Mount
A two axis kinematically adjustable mount designed
for use with the N3400 series of laser cavity mirrors. Mirror mounts
feature standard 40 pitch adjusting screws, and come mounted on a
standard 1 3/4" carriage mount.
Related Products: Laser
Cavity Mirrors
|
| Part No. |
Description: |
| N1008-1 |
Mirror
mount assembly with carriage mount for use with std 3/4" diameter
(N3400 series) mirrors |
| N1008-1-A |
As
above, but without carriage mount |
| N1008-2 |
Mirror
mount assembly with carriage mount for use with special 1" diameter
mirrors |
| N1008-2-A |
As
above, but without carriage mount |

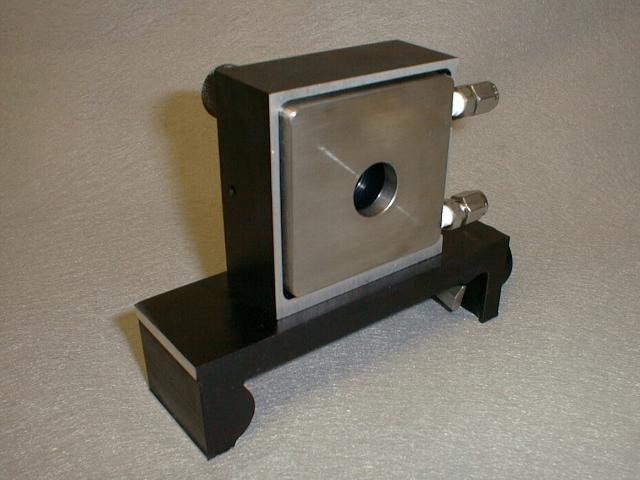

 Water Cooled
Mirror Mount
This mirror mount is similar to the model N1008,
but has provisions for water cooling. High powered Nd:YAG lasers in the
kilowatt range can suffer from mirror overheating, and subsequent
optical damage or misalignment. The water cooled mirror mount has a
stainless steel pivot plate, with integral water cooling. Because the
pivot plate is fabricated from stainless steel, temperature regulated
cooling water can de drawn from the main deionized water system. May
also be used as an optics mount for CO2 lasers.
Related
Products:
Laser Cavity Mirrors
|
| Part No. |
Description: |
| N1008-3 |
Water cooled mirror mount
assembly with stainless steel pivot plate and carriage mount for use
with std 3/4" diameter mirrors |
| N1008-3-A |
As above, but less carriage
mount |
| N1008-4 |
Water cooled mirror mount with
aluminum water cooled pivot plate (requires external water source) |
| N1008-4-A |
As above, but less carriage
mount |
 Kinematic Mirror
Mount
A carriage mounted mount for 2 1/8" and 3"
diameter mirrors at 45 degrees incidence, used to re-direct a
horizontal laser beam downward at 90 degrees. The mount is slotted such
that the entire assembly may be linearly translated along the beam axis
by loosening the 4 locking screws. The mirror is kinematically mounted
with 2 axes of 40 pitch micrometer thread tilt adjustment.
Related Products: Dichroic
Mirrors
|
| Part No. |
Description: |
| N1037-1 |
2 1/8" diameter kinematic
mirror mount, vertical |
| N1037-2 |
3" diameter kinematic mirror
mount, vertical |

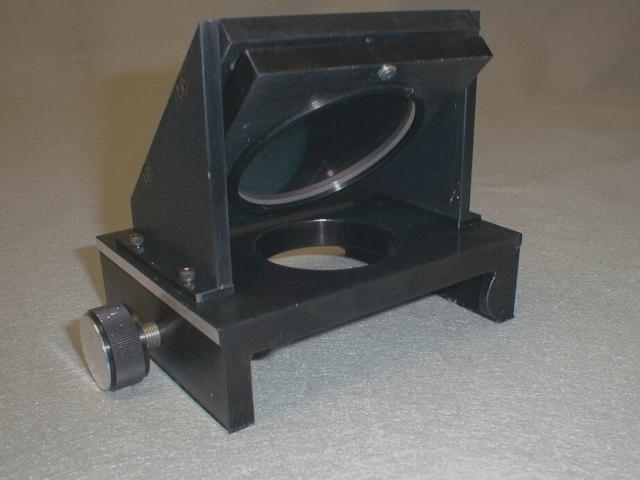

Kinematic
Dichroic Mirror Mount
A special version of the Model N1008 mirror
mount assembly, for use with 2 1/8" dichroic mirrors. Dichroic mirror
mounts are available in two versions, one at normal incidence, and the
other at 45o, which provides an efficient way of bending the beam 90o.
Dichroic mirror mounts feature 40 pitch micrometer thread adjusting
screws, and come mounted on a standard U.S. Laser carriage mount.
|
 |
|
 |
|
|
Related Products: Dichroic
Mirrors
|
| Part No. |
Description: |
| N1037-3 |
Kinematic dichroic mount for 2
1/8" diameter mirror, normal incidence |
| N1037-4 |
Kinematic dichroic mount for 2
1/8" mirror, 45o incidence, mounted on a 3" carriage mount |
Q-Switch
Mount
A two axis kinematically adjustable mount
for use with acousto-optic Q-switches such as Model N1011. Two axis
mounts are highly desirable over single axis mounts due to their
ability to be precisely aligned to reduce insertion loss, and optimize
the Bragg angle adjustment. Mount is directly compatible with
Q-switches of most manufacturers. Q-switch mounts are supplied mounted
on a standard U.S. Laser carriage mount.
|
 |
|
 |
Related Products: AO
Q-switch
|
| Part No. |
Description: |
| N1009-1 |
2
axis kinematic A-O Q-switch mount, directly compatible with U.S. Laser,
Control Laser, Holobeam, Lee Laser, and Lasermetrics optical rails.
(Q-Switch not included) |
| N1009-2 |
4
axis adjustable A-O Q-switch mount. In addition to the two axes of tilt
adjustment provided in the model N1009-1 mount, this mount also has
precision X-Y adjustment capability. (Q-Switch not included) |

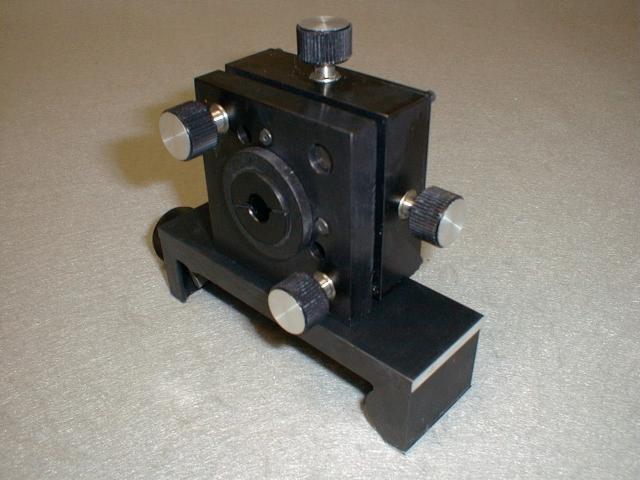

 5-Axis Harmonic
Generator Mount
The U.S. Laser Harmonic Generator Mounts are
designed to provide the precise adjustment capabilities necessary with
angle tuned harmonic generation. Four axes of tilt and X - Y adjustment
are provided with micrometer thread adjusting screws. A fifth manual
axis of adjustment is available by loosening the locking screw, and
manually rotating the crystal mount. Also provided is an integral
waveplate mount which accepts 1" diameter waveplates, and can be
manually rotated. This mount is designed to accept the U.S. Laser SHG
crystal cell, but will also accept other 1 1/4" diameter cells. The 5
axis mount comes mounted on a standard U.S. Laser carriage mount.
Related Products:
Harmonic Generation Cells
|
| Part No. |
Description: |
| N1013-1 |
5
Axis Harmonic Generator Mount Assembly |
| N1013-2 |
As
above, but less carriage mount |
| N1013-3 |
5
Axis Harmonic GeneratorMount Assembly, less Waveplate mount. |
| N1013-4 |
5
Axis Harmonic GeneratorMount Assembly, less Waveplate mount and
carriage mount. |

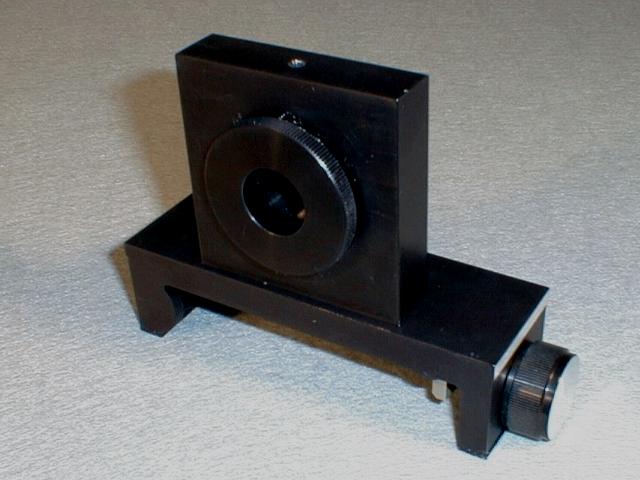

 Waveplate Mount
A rotationally adjustable waveplate mount designed
to hold 1" diameter quarter and half wave plates. Mount is supplied
mounted on a standard U.S. Laser carriage mount.
Related Products: Waveplates
|
| Part No. |
Description |
| N1038 |
Waveplate
mount assembly, for use with 1" diameter waveplates |
|
