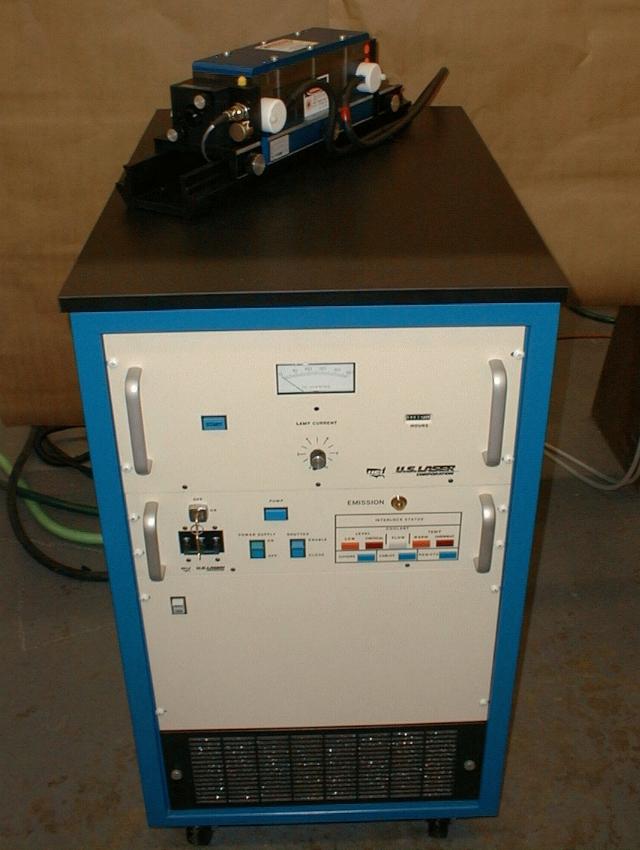

U.S. Laser manufactures a complete line of laser systems for end users, OEM's, and system builders. These high quality lasers are the same systems used in our line of turn-key laser systems. Standard configuration features a console mounted power supply and cooler assembly with a rail mounted laser head. OEM packages are available for rack mounting and other special configurations. C.W. versions are available, with power levels from a few watts of TEM00 to levels in excess of 2 KW in multimode. Q-switching as well as fundamental and harmonic wavelengths are also available. Pulsed version are also available at power levels up to 250 watts of average power. Please contact us to discuss our laser product line. We are confident that we have a laser to suit your needs, but if we don't, perhaps we can use our years of experience to design a custom laser for you.

High Power CW Multimode Lasers

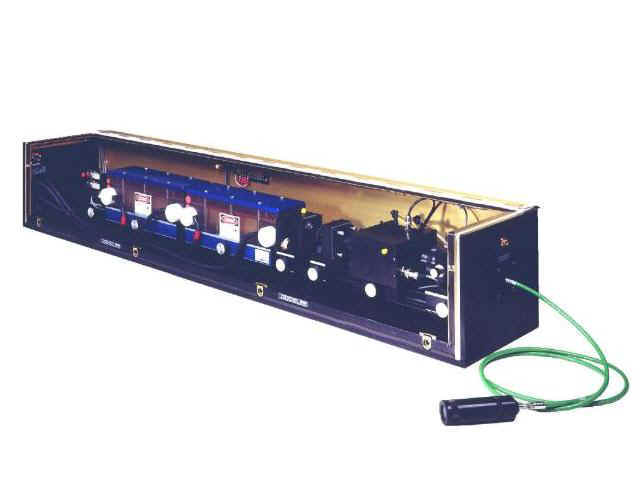

At the heart of U.S. Laser's high power CW multi-mode laser is our unique laser head design. The head is a single lamp, close coupled design, optimized for maximum pumping efficiency and high beam quality. The single lamp design reduces consumable costs, while the high efficiency reduces energy and cooling requirements. High beam quality allows for smaller focused spot size and high power density at the target. U.S. Laser's high power CW lasers, by virtue of their high efficiency single lamp design, offer an economical solution to many welding, cutting, heat treating and metal deposition applications. The head design allows for cascading of heads in a series periodic resonator. Single, two-headed and four-headed systems are available.

Technical Specifications

Low Order CW Multimode and Q-Switched Lasers

U.S. Laser's low order multi-mode laser offer superior beam quality for smaller focused spot size and higher power density at the target. They are ideal for soldering applications and precision welding and cutting. They are also offered in Q-switched configurations.

Laser Operating Mode Table

Low Order CW Multimode and Q-Switched
Model #	Model #	Max Output	Beam Diameter	Divergence
		(watts)	(mm)	(mr)
403L	403LQ	50-75	4	4-6
404L	404LQ	120	5	4-8
405L	405LQ	150	5	4-10

Q-Switched TEM₀₀ Mode Lasers

U.S. Laser's diffraction limited TEM00 mode lasers offer high power and stability for micro-machining, scribing, photovoltaic panel processing, drilling and resistor trimming applications.

Laser Operating Mode Table

Q-Switched TEM00Mode Lasers
Model #	Max Output	Beam Diameter	Divergence
	(watts)	(mm)	(mr)
403TQ	12-14	1	d.l.
404TQ	16-18	1	d.l.

High Power Multimode Q-Switched Lasers:

U.S. Laser's high power multi-mode Q-Switched lasers offer high beam quality and very high peak power densities, ideal for paint stripping and other surface removal applications.

Laser Operating Mode Table

High Power Multimode Q-Switched Lasers
Model #	Max Output	Beam Diameter	Divergence
	(watts)	(mm)	(mr)
405Q	250	6	12-16
406Q	500	5	18-22

Frequency Multiplied Q-Switched TEM₀₀ Mode Lasers:

U.S. Laser offers a variety of power levels in 532 nm frequency doubled Nd:YAG lasers. We also offer frequency tripled and quadrupled ultra-violet lasers. Frequency multiplying assemblies are rail mounted for ease of insertion into beam path, allowing for rapid change-over between the available output frequencies. These systems offer high power and stability for micro-machining, scribing, photovoltaic panel processing, and drilling applications.

Laser Operating Mode Table

Frequency Multiplied Q-Switched TEM00 Mode Lasers
Model	Wavelength	Max Output	Beam Diameter	Divergence
	(nm)	(watts)	(mm)	(mr)
403CQG	532	2.0	1	d.l.
403TQGH	532	4.0	1	d.l.
403TQG3	532	6.0	1	d.l.
403TQGS	532	2.5	1	d.l.
403TQNU	355	1.0-1.5	1	d.l.
403TQUV	266	0.25	1	d.l.

Pulsed Lasers

U.S. Laser's pulsed lasers are designed with small beam diameters and low divergence to deliver exceptional high brightness for welding and drilling applications. Simmer mode power supplies provide extended lamp life and excellent pulse-to-pulse stability.

High Power Pulsed Nd:YAG Lasers
Model #	Max Output	Beam Diameter	Max Energy per Pulse	Divergence
	(watts)	(mm)	(J)	(mr-full angle)
303	100	5	30	2-6
305	250	6.3	45	4-7
305-5	500	6.3	45	6-10
306	600	6.3	50	6-10
