| Turnkey Systems |
| U.S. Laser designs and builds turnkey laser material processing systems for production environments, combining accuracy and precision with stability and ruggedness. The system concept is to utilize standard building blocks to produce custom machines. These standard building blocks are the laser, beam delivery optics, multi-axis motion with control system, and the frame and enclosure structure. In addition to systems built with U.S. Laser lamp pumped Nd:YAG lasers, U.S. Laser also supplies systems built with Nd:YAG diode pumped lasers manufactured by other suppliers like Spectra-Physics, Coherent, and Lee Laser. Carbon dioxide laser systems are built with lasers supplied by Coherent and Synrad. |
|
|
|
|
More on Turnkey Systems
Technical Specifications
Laser Operating Mode Table
|
|
| Laser Marking Systems |
| Designed for industrial environments, U.S. Laser's laser markers are rugged systems that can be expected to operate for years with little maintenance beyond periodic lamp replacement. U.S. Laser offers turnkey systems as well as a variety of OEM configurations. With a high speed galvanometer beam steering system and minimum line width less than0.002" you can print characters of nearly any size at speeds up to several hundred character per second. Standard flat field lens sizes include 4 inch square, 6 inch square and 12 inch square. Graphics as well as alphanumeric characters in any orientation are possible. The 2000 Series Windows 95/98 or NT based software is easy to use, and provides for on screen display, positioning, sizing and orientation of all characters. Serialization and bar coding can be managed as well. Marking Applications |
|
|
More on Marking Systems
Technical Specifications
Software Features
Download Demo Software
|
|
| Special Purpose Laser Systems |

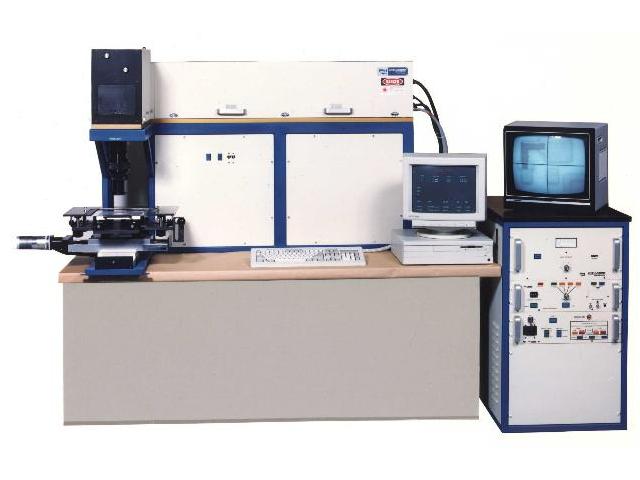

| U.S. Laser specializes in building systems for specialized applications. We are experts in designing and building custom conventional and fiber optic beam delivery systems to focus and shape the laser beam. Motion systems are an integral part of any turn-key system, and we offer both fixed and moving beam systems based on x-y tables and galvanometers. Multiple axes and complex computer controlled motion is not a problem. All systems are built around a rigid welded steel frame structure to provide the stability demanded of an industrial system. Since U.S. Laser builds all of it's own lasers, we can even custom design modify and existing laser to accommodate even the most demanding application. Shown to the right is a typical custom system designed for sealing parts in vacuum system. |
|
|
| System Upgrades |
| U.S. Laser can provide system upgrades both to U.S. Laser supplied systems as well as systems manufactured by other suppliers. Whether it is an optical upgrade to provide better CCTV viewing or a smaller focused spot size, a new laser to harness state-of-the-art laser technology for your material processing needs, or improved parts handling system to increase the throughput or accuracy of your process, U.S. Laser can provide the solution you need. |
|
|
|
