Supplies for Linear Krypton Arc Lamps
U.S. Laser manufactures current controlled arc
lamp power supplies for C.W. pumping of Nd:YAG laser crystals. The
standard series is applicable to krypton lamps with arc voltages of 60
volts to 375 volts, and currents up to 50 amps. Custom power supplies
are available for special lamps and mobile equipment.
Related Product: Power
Supply Consoles
|
 Phase Modulated
Power Supplies

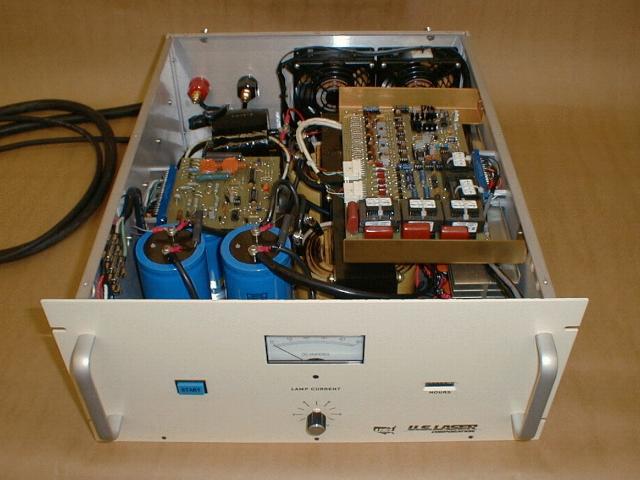

S.C.R. based, phase angle controlled power
supplies are intended for rugged industrial applications. The units are
rack mountable, and include a front panel current control, current
meter, hour meter, and start button. A rear panel connector is
standard, and allows for remote current control. These power supplies
are intended to operate in conjunction with an isolation/voltage
matching transformer (consult factory). All require 208-240VAC, 3O
service.
|
| Part No. |
Max Output Voltage,
Current, Power |
| N8001-2 |
170 Volts, 23 Amps, 4 KW |
| N8001-1 |
275 Volts, 50 Amps, 13.5 KW |
| N8001-3 |
360 Volts, 50 Amps, 18 KW |

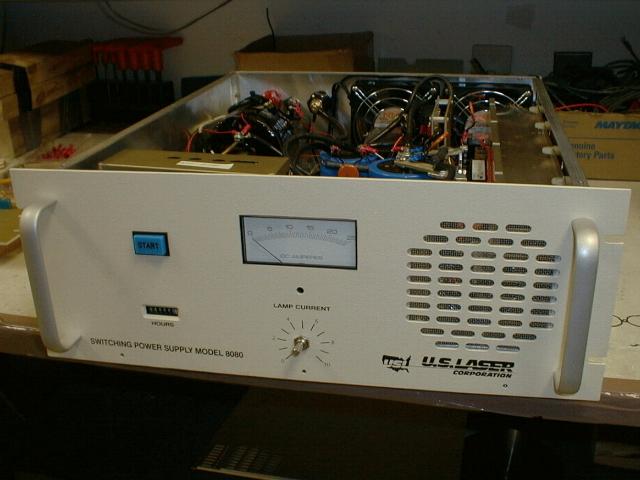

 Switching Power
Supplies
Switching power supplies are smaller, lighter, and
exhibit lower ripple content than SCR based power supplies. U.S. Laser
switching power supplies are recommended for mobile equipment,
micro-machining applications, and systems requiring rapid current
modulation. Rack panel versions include a front panel current control,
current meter, hour meter, and start button. All U.S. Laser switching
power supplies may be controlled via a rear panel connector.
|
| MODEL NO. |
MAXIMUM OUTPUT
VOLTAGE |
MAXIMUM CURRENT |
OUTPUT POWER |
FRONT PANEL |
INPUT POWER |
TRANS-FORMER REQUIRED |
| N8084 |
120 Volts |
22 Amps |
2.2 KW |
No |
1O 115VAC, 22 Amps |
No |
| N8083 |
200 Volts |
25 Amps |
4.0 KW |
No |
1O 208-230VAC, 22 Amps |
No |
| N8081 |
200 Volts |
25 Amps |
4.0 KW |
No |
3O 208-230VAC, 13 Amps |
No |
| N8083-1 |
200 Volts |
25 Amps |
4.0 KW |
Yes |
1O 208-230VAC, 22 Amps |
No |
| N8081-1 |
200 Volts |
25 Amps |
4.0 KW |
Yes |
3O 208-230VAC, 13 Amps |
No |
| N8080 |
260 Volts |
50 Amps |
13.0 KW |
Yes |
3O 208-230VAC, 40 Amps |
No * |
| N8082 |
360 Volts |
50 Amps |
18.0 KW |
Yes |
208-230VAC, 3O, 58 Amps |
Yes |
* Input transformer recommended for low voltage
applications. For maximum output voltage capability, a 225 VAC line is
necessary.
 R.F. Driver
Modules and Assemblies

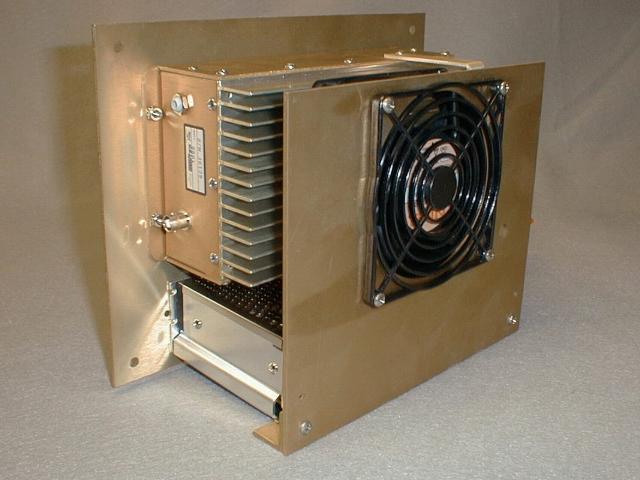

The U.S. Laser RF driver series is intended for
powering shear wave acousto-optic Q-switches that are impedance matched
to 50 ohms. The drivers include a modulation input, output power adjust
control, and R.F. output via BNC jack. Standard drivers are adjustable
to 65 watts of output R.F. power. Dual output drivers are adjustable to
55 watts of R.F. output per channel. The standard series R.F. drivers
are also available as packaged assemblies, which include the power
supply, cooling fan, and mounting plates.
Related Products: AO
Q-switch, R.F. Wattmeter
|
| Module Only |
Assembly |
Description |
| N8801 |
N8811 |
24.00 MHz, single output |
| N8802 |
N8812 |
27.12 MHz, single output |
| N8805 |
N8815 |
24.00 MHz, dual output |
| N8806 |
N8816 |
27.12 MHz, dual output |
|

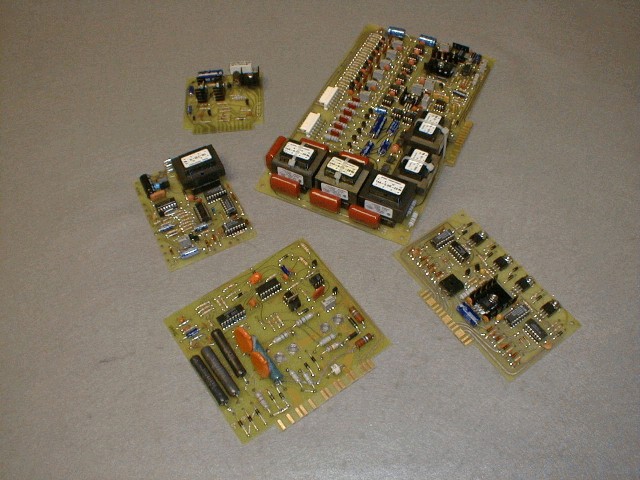

U.S. Laser stocks a complete line of printed
circuit boards for the systems it manufactures. We also provide an
economical repair service for circuit boards with minor problems. If
you have an old or obsolete laser system with a circuit board problem,
contact us. We have been successful in repairing board from many old
laser systems, even when schematics or other documentation is
unavailable. Please contact us to discuss your problem, perhaps we can
help.
|
|
