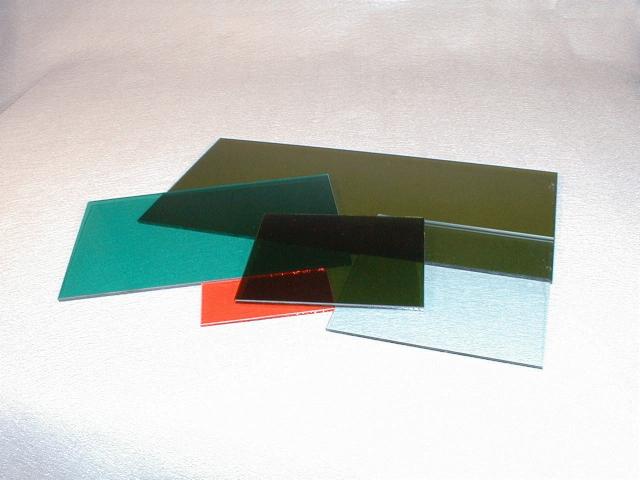

Safety windows are designed to provide a safe and
convenient way of viewing into a laser work chamber or any other area
where laser radiation is present. Windows are made from plastic sheets
which are designed to selectively absorb laser radiation while
providing sufficient transmission in the visible portion of the
spectrum. Plastic windows may be optionally laser marked to identify
the laser wavelength and optical density. Windows are available in
standard sizes listed, and custom sizes up to the maximum of 24" X 36".
Related Products: Safety
Eyewear
|
1080 - For use with Nd: lasers
operating at 1064nm, O.D. >5, visual transmission ~35%, material
is acrylic, 3.5 mm thick, color is green.
| Part No. |
Size |
| N1080-3 |
6" x 6" sheet |
| N1080-4 |
6.5" x 10" sheet |
| N1080-5 |
12" x 12" sheet |
| N1080-6 |
18" x 8" sheet |
| N1080-7 |
Special sizes up to 8.437" x
5.5", consult factory. |
1080 HT - Same properties as the model 1080
filter, except that the visual transmission is ~70%, and the color is
light green.
| Part No. |
Size |
| N1080HT-3 |
6" x 6" sheet |
| N1080HT-4 |
6.5" x 10" sheet |
| N1080HT-5 |
12" x 12" sheet |
| N1080HT-6 |
18" x 8" sheet |
| N1080HT-7 |
Special sizes up to 8.437" x
5.5", consult factory. |
1081 - For use with frequency doubled Nd:YAG
and Argon lasers, O.D. >4 at 190 nm - 532 nm, visual
transmission ~34%, material is acrylic, 3.5 mm thick, color is orange.
| Part No. |
Size |
| N1081-3 |
6" x 6" sheet |
| N1081-4 |
6.5" x 10" sheet |
| N1081-5 |
12" x 12" sheet |
| N1081-6 |
18" x 8" sheet |
| N1081-7 |
Special sizes up to 24" x 36",
consult factory. |
1082 - For use with CO2
lasers, O.D. >6, visual transmission ~90%,
material is acrylic, 3.5 mm thick, color is clear.
| Part No. |
Size |
| N1082-1 |
6" x 6" sheet |
| N1082-2 |
6.5" x 10" sheet |
| N1082-3 |
12" x 12" sheet |
| N1082-4 |
Special sizes up to 24" x 36",
consult factory. |
1083 - For use with Ruby lasers, O.D. >6
at 694.3 nm, visual transmission ~60%, material is acrylic, 3.5 mm
thick, color is blue.
| Part No. |
Size |
| N1083-3 |
6" x 6" sheet |
| N1083-4 |
12" x 12" sheet |
| N1083-5 |
Special sizes up to 24" x 36",
consult factory. |
1084 - Special dual band filter for use with
Nd:YAG lasers operating in both the fundamental and
second harmonic, O.D. >4 at 190 nm - 532 nm, O.D. >5 at
1064 nm, O.D. >4 at 900 nm-1070 nm, visual transmission 20%,
material is acrylic, 3.5 mm thick, color is brown.
| Part No. |
Size |
| N1084-1 |
6" x 6" sheet |
| N1084-2 |
6.5" x 10" sheet |
| N1084-3 |
12" x 12" sheet |
| N1084-4 |
18" x 8" sheet |
| N1084-5 |
Special sizes up to 24" x 36",
consult factory. |
|
