| U.S.
Laser designs and builds turnkey laser material processing systems
for production environments, combining accuracy and precision with
stability and ruggedness. The system concept is to utilize standard
building blocks to produce custom machines. These standard building
blocks are the laser, beam delivery optics, multi-axis motion with
control system, and the frame and enclosure structure. In addition to
systems built with U.S. Laser lamp pumped Nd:YAG lasers, U.S.
Laser also supplies systems built with diode pumped lasers manufactured
by other suppliers like Spectra-Physics, Coherent, and Lee
Laser.
|
||||||||||||||||||||||||||||||||||||||||||||||
| High Power CW Multimode Lasers: | ||||||||||||||||||||||||||||||||||||||||||||||
| At the heart of U.S. Laser’s high power CW multi-mode laser is our unique laser head design. The head is a single lamp, close coupled design, optimized for maximum pumping efficiency and high beam quality. The single lamp design reduces consumable costs, while the high efficiency reduces energy and cooling requirements. High beam quality allows for smaller focused spot size and high power density at the target. U.S. Laser’s high power CW lasers, by virtue of their high efficiency single lamp design, offer an economical solution to many welding, cutting, heat treating and metal deposition applications. The head design allows for cascading of heads in a series periodic resonator. Single, two-headed and four-headed systems are available. |
|
|||||||||||||||||||||||||||||||||||||||||||||
| Low Order CW Multimode and Q-Switched Lasers: |
|
|||||||||||||||||||||||||||||||||||||||||||||
| U.S. Laser’s low order multi-mode laser offer superior beam quality for smaller focused spot size and higher power density at the target. They are ideal for soldering applications and precision welding and cutting. They are also offered in Q-switched configurations. | ||||||||||||||||||||||||||||||||||||||||||||||
| Laser Marking Systems | ||||||||||||||||||||||||||||||||||||||||||||||
| Designed for industrial environments, U.S. Laser’s laser markers are rugged systems that can be expected to operate for years with little maintenance beyond periodic lamp replacement. U.S. Laser offers turnkey systems as well as a variety of OEM configurations. With a high speed galvanometer beam steering system and minimum line width less than0.002" you can print characters of nearly any size at speeds up to several hundred character per second. Standard flat field lens sizes include 4 inch square, 6 inch square and 12 inch square. Graphics as well as alphanumeric characters in any orientation are possible. The Autolase 2000 Windows 95/98 or NT based software is easy to use, and provides for on screen display, positioning, sizing and orientation of all characters. Serialization and bar coding can be managed as well. Marking Applications |
|
|||||||||||||||||||||||||||||||||||||||||||||
| More on Marking Systems | ||||||||||||||||||||||||||||||||||||||||||||||
| Technical Specifications | ||||||||||||||||||||||||||||||||||||||||||||||
| Software Features | ||||||||||||||||||||||||||||||||||||||||||||||
| Q-Switched TEM00 Mode Lasers |
|
|||||||||||||||||||||||||||||||||||||||||||||
| U.S. Laser’s diffraction limited TEM00 mode lasers offer high power and stability for micro-machining, scribing, photovoltaic panel processing, drilling and resistor trimming applications. | ||||||||||||||||||||||||||||||||||||||||||||||
| High Power Multimode Q-Switched Lasers: |
|
|||||||||||||||||||||||||||||||||||||||||||||
| U.S. Laser's high power multi-mode Q-switched lasers offer high beam quality and very high peak power densities, ideal for paint stripping and other surface removal applications. | ||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Multiplied Q-Switched TEM00 Mode Lasers |
|
|||||||||||||||||||||||||||||||||||||||||||||
| U.S. Laser offers a variety of power levels in 532 nm frequency doubled Nd:YAG lasers. We also offer frequency tripled and quadrupled ultra-violet lasers. Frequency multiplying assemblies are rail mounted for ease of insertion into beam path, allowing for rapid change-over between the available output frequencies. These systems offer high power and stability for micro-machining, scribing, photovoltaic panel processing, and drilling applications. | ||||||||||||||||||||||||||||||||||||||||||||||
| Pulsed Lasers: |
|
|||||||||||||||||||||||||||||||||||||||||||||
| U.S. Laser's pulsed lasers are designed with small beam diameters and low divergence to deliver exceptional high brightness for welding and drilling applications. Simmer mode power supplies provide extended lamp life and excellent pulse-to-pulse stability. | ||||||||||||||||||||||||||||||||||||||||||||||
| Special Purpose Laser Systems | ||||||||||||||||||||||||||||||||||||||||||||||

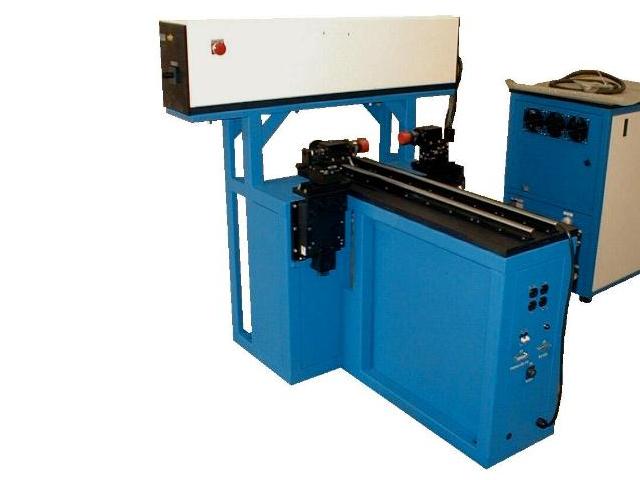

| U.S. Laser specializes in building systems for specialized applications. We are experts in designing and building custom conventional and fiber optic beam delivery systems to focus and shape the laser beam. Motion systems are an integral part of any turn-key system, and we offer both fixed and moving beam systems based on x-y tables and galvanometers. Multiple axes and complex computer controlled motion is not a problem. All systems are built around a rigid welded steel frame structure to provide the stability demanded of an industrial system. Since U.S. Laser builds all of it's own lasers, we can even custom design modify and existing laser to accommodate even the most demanding application. Shown to the right is a typical custom system designed for sealing parts in vacuum system. |
|
|||||||||||||||||||||||||||||||||||||||||||||
